Характеристики
| Параметр |
Значение |
| Viewing Angle: |
80°/80°(L/R) 80°/80°(U/D) |
| Размер: |
7 inch |
| Screen Brightness: |
500 |
| MPN: |
F7 PRO |
| Item Length: |
175mm |
| Max Power Consumption: |
9W |
| Color System Type: |
NTSC, PAL, SECAM |
| Image Control: |
Audio Meter, False Color, Focus Assist, Focus Peaking, Histogram, Image Flip, LUT Import, Vectorscope, Waveform, RGB Histogram, Exposure (Zebras), Check Field, Zoom In (100%～300%), Anamorphic Mode, Nine Grid, Pixel to Pixel, Center Marker, Ratio Marker |
| Form Factor: |
DSLR Camera Field HDMI Video Monitor |

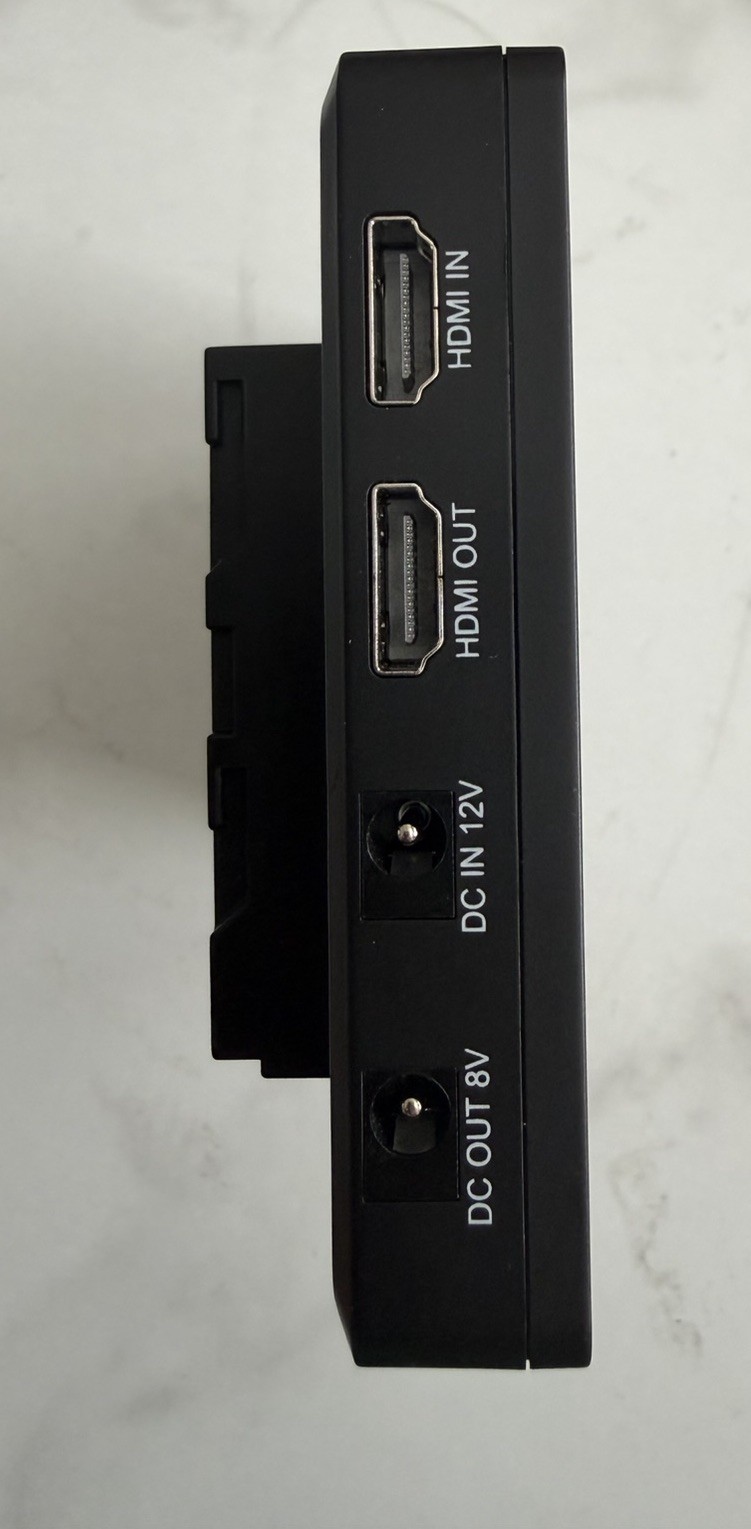

| Output Interfaces: |
HDMI, DC OUT 8V, 3.5mm Headphone Jack |
| Unit Type: |
Unit |
| Display Type: |
LCD |
| Manufacturer Warranty: |
1 Year |
| Backlight: |
LED |
| Item Height: |
105mm |
| Number of Inputs: |
4 |
| Contrast Ratio: |
1200:1 |
| Working Temperature: |
-20°C~50°C |

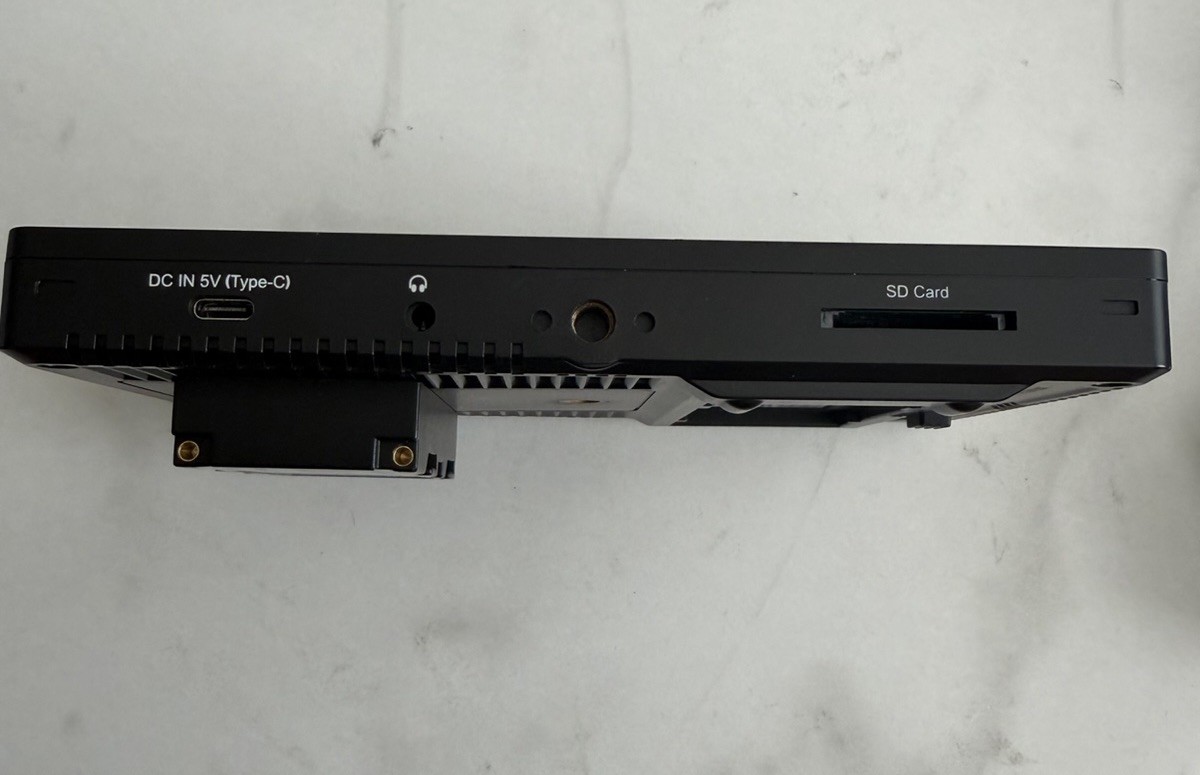

| Input Interfaces: |
HDMI, DC IN 12V, SD Card, Type-C |
| Особенности: |
Display, Headphone Output, LCD Monitor, SD-Card, Touchscreen, 3D LUT, HDR Monitoring, Portable, Light Weight |
| Unit Quantity: |
1 |
| Item Width: |
22mm |
| Storage Temperature: |
-30°C~60°C |
| Размер экрана: |
7 in |
| Applications: |
For Gimbal, Handheld Stabilizer |
| Video Format: |
HD |
| Цвет: |
Black |
| Input Voltage: |
DC7～24V |
| Functions: |
Camera Display, External Display, HDMI Display |
| Материал: |
Plastic |
| Aspect Ratio: |
16:10 |
| Number of Outputs: |
3 |
| Pixel Pitch: |
0.07875 (H) x 0.07875 (W) (mm) |
| Производитель: |
Feelworld |
| Тип: |
Video Monitor |
| Модель: |
F7 PRO |

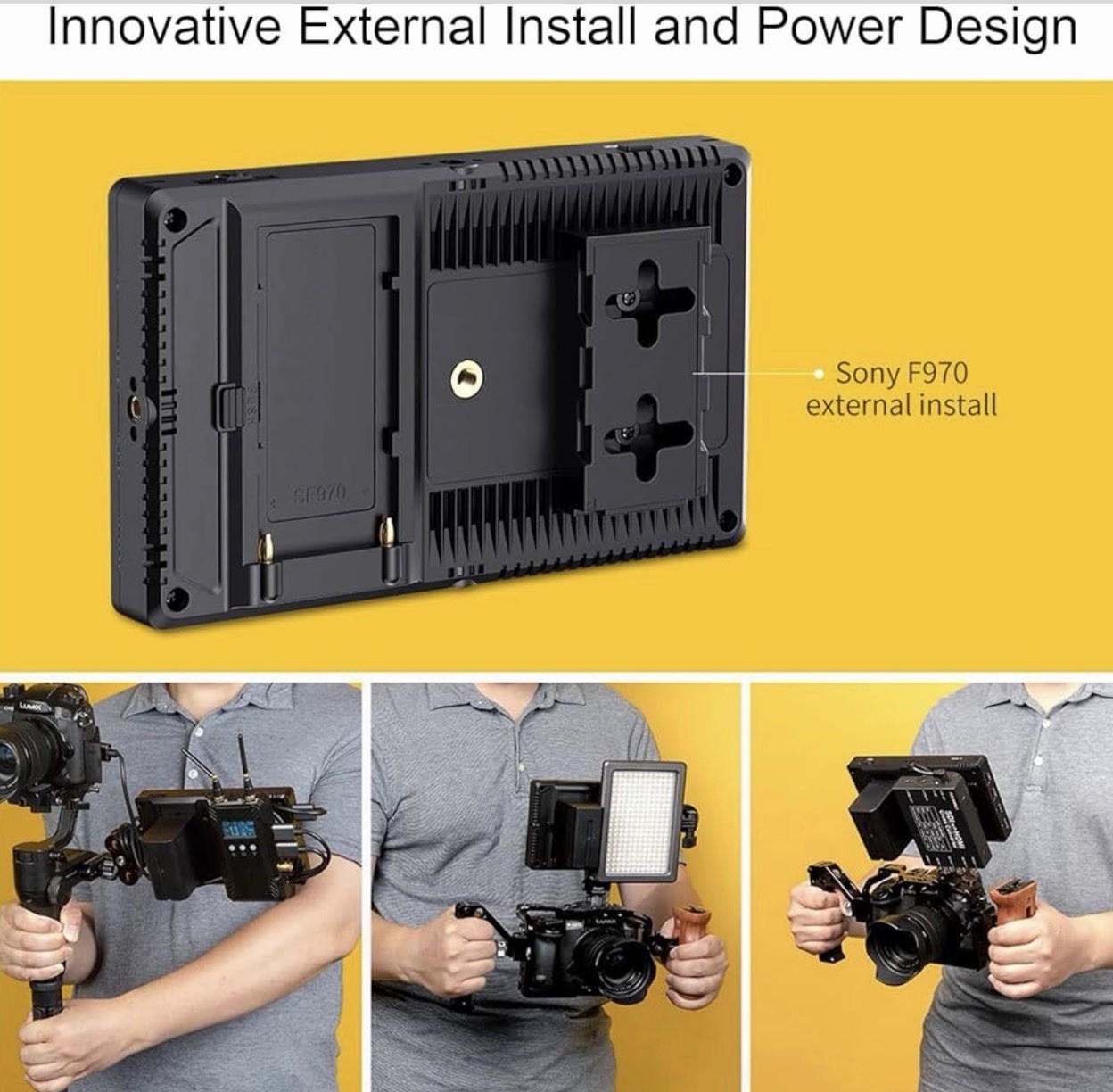

| Compatible Mount: |
Hot-Shoe Mount, Battery Mount (withtout battery) |
| Connectivity: |
Audio, HDMI, DC 5.5x2.1mm, USB Type-C |
| Country of Origin: |
China |
| Item Weight: |
330g |
| Линейка продуктов: |
FEELWORLD F7 PRO |
| Install Way: |
1/4"-20 Thread Socket (Top, Left, Right, Bottom) |
| Разрешение: |
1920x1200 pixels |
| Универсальный товарный код: |
6971863813905 |
